| Subtypes | |
| IE3000-4TC-16 | Cisco Catalyst series |
| Manufacturer | Cisco Industrial Ethernet 3000 Series Switches |
| Ports | 4 Ethernet 10/100 ports and 2 dual-purpose uplinks (each dual-purpose uplink port has one active port either 10/100/1000 copper or SFP fiber |
| Supported Expansion Modules | Support up to two expansion modules with various combinations |
| Power | DC input range 18VDC-60VDC |
| Software | Layer 2 LAN Base Image |
| Dimensions (H x W x D) | (152mm W x 147mm H x 112mm D) |
| Weight | 4.4 lb (2.0 kg) |

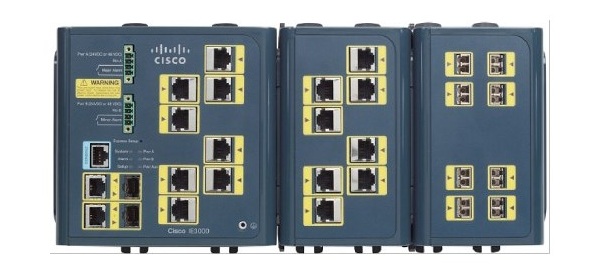

| The Cisco IE 3000 offers: ● Design for Industrial Ethernet applications, including extended environmental, shock/vibration, and surge ratings; a complete set of power input options; convection cooling; and DIN-rail or 19” rack mounting ● Support for Power over Ethernet (PoE) up to 15.4W per port ● Support for Power over Ethernet Plus (PoE+) for the PoE+ capable devices up to 30W per port ● Easy setup and management using Cisco DNATM Center software and the Cisco Device Manager web interface and supporting tools, including Cisco Network Assistant (CNA) and Cisco Prime LMS 4.2 ● Easy switch replacement using removable memory, allowing the user to replace a switch without having to reconfigure ● High availability, guaranteed determinism, and reliable security using Cisco IOS® Software ● Recommended software configurations for industrial applications that can be applied at the touch of a button ● Compliance to a wide range of Industrial Ethernet specifications covering industrial automation, ITS, substation, railway, and other markets ● Support for IEEE1588v2, a precision timing protocol with nanosecond-level precision for high-performance applications ● Improved ring resiliency with the support of Resilient Ethernet Protocol (REP) ● Transparent IT integration with the support of Layer 3 routing protocols (IP Services) ● PROFINET v2 certification, with PROFINET conformance class B compliance | |
| Model | Description |
| IEM-3000-8TM | ● Expansion Copper module for Cisco IE-3000-4TC and IE-3000-8TC switches ● 8 10/100 TX ports |
| IEM-3000-8FM | ● Expansion Fiber module for Cisco IE-3000-4TC and IE-3000-8TC switches ● 8 100 FX ports |
| IEM-3000-4SM | ● Expansion SFP module for Cisco IE-3000-4TC and IE-3000-8TC switches ● 4 100M SFP ports |
| IEM-3000-8SM | ● Expansion SFP module for Cisco IE-3000-4TC and IE-3000-8TC switches ● 8 100M SFP ports |
| IEM-3000-4PC | ● Expansion PoE/PoE+ module for Cisco IE-3000-4TC and IE-3000-8TC switches ● 4 10/100 PoE/PoE+ ports ● External PoE power source (44-57 VDC for PoE/50-57 VDC for PoE+) |
| IEM-3000-4PC-4TC | ● Expansion PoE/PoE+ module for Cisco IE-3000-4TC and IE-3000-8TC switches ● 4 non-PoE ports and 4 10/100 PoE/PoE+ ports ● External PoE power source (44-57 VDC for PoE/50-57 VDC for PoE+) |
| PWR-IE50W-AC | ● Expansion power module for IE-3000-4TC and IE-3000-8TC switches |
| PWR-IE50W-AC-IEC | ● Expansion power module for IE-3000-4TC and IE-3000-8TC switches |
| PWR-IE65W-PC-AC | ● AC-DC, 54VDC power module to support 65 watts for PoE/PoE+ modules |
| PWR-IE65W-PC-DC= | ● DC-DC, 54VDC power module to support 65 watts for PoE/PoE+ modules |
| GLC-TE | 1000BASE-T SFP transceiver module for Category 5 copper wire |
| GLC-ZX-SM | 1000BASE-ZX SFP |
| GLC-BX-U | 1000BASE-BX SFP, 1310NM |
| SFP-GE-L | 1000BASE-LX/LH SFP (DOM) |
| GLC-ZX-SMD | Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
| GLC-SX-MMD | Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
| Ports | 4 Ethernet 10/100 ports and 2 dual-purpose uplinks (each dual-purpose uplink port has one active port either 10/100/1000 copper or SFP fiber |
| Supported Expansion Modules | Each switch supports 2 Cisco modules, 1 Cisco IEM-3000-8FM= module, or 1 Cisco IEM-3000-8TM= module and 1 Cisco IEM-3000-8FM= module |
| Power | DC input range 18VDC-60VDC |
| Software Included | Cisco IOS IP Services |
| Software | Layer 2 LAN Base Image |
| Dimensions (H x W x D) | (152mm W x 147mm H x 112mm D) |
| Weight | 4.4 lb (2.0 kg) |
| Performance | ● Wire-speed switching, 16 Gbps switching fabric ● Forwarding rate based on 64-byte packets: 6.5 Mpps ● 128 MB DRAM ● 64 MB Compact Flash memory ● Configurable up to 8000 MAC addresses (Layer 2) ● Configurable up to 2000 MAC addresses (Layer 3) ● Configurable up to 256 IGMP multicast groups (Layer 2) ● Configurable up to 1000 IGMP groups and multicast routes (Layer 3) ● Configurable up to 3,000 unicast routes (Layer 3) ● Support jumbo frames up to 9018 bytes on Gigabit uplink port and mini-jumbo frame (system MTU) up to 1998 bytes on both 10/100 and 10/100/1000 ports |
| Connectors and cabling | ● 10BASE-T ports: RJ-45 connectors, two-pair Category 3, 4, or 5 Unshielded Twisted-Pair (UTP) cabling ● 100BASE-TX ports: RJ-45 connectors, two-pair Category 5 UTP cabling ● 1000BASE-T ports: RJ-45 connectors, four-pair Category 5 UTP cabling ● 1000BASE-SX, -LX/LH, -ZX SFP-based ports: LC fiber connectors (single/multimode fiber) ● 100BASE-LX10, -FX: LC fiber connectors (single/multimode fiber) |
| Indicators | ● Per-port status LED: Link integrity, disabled, activity, speed, full-duplex indications ● System-status LED: System, link status, link duplex, link speed, indications |
| Dimensions (H x W x D) | ● Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: 6.0”W x 5.8”H x 4.4”D (152mm W x 147mm H x 112mm D) ● Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 6.0”W x 5.8”H x 4.4”D (152mm W x 147mm H x 112mm D) ● Cisco IEM-3000-8TM=: 3.5”W x 5.8”H x 4.4”D (89mm W x 147mm H x 112mm D) ● Cisco IEM-3000-8FM=: 3.5”W x 5.8”H x 4.4”D (89mm W x 147mm H x 112mm D) ● Cisco IEM-3000-4SM=: 3.5”W x 5.8”H x 4.4”D (89mm W x 147mm H x 112mm D) ● Cisco IEM-3000-8SM=: 3.5”W x 5.8”H x 4.4”D (89mm W x 147mm H x 112mm D) ● Cisco IEM-3000-4PC=: 3.5”W x 5.8”H x 4.4”D (89mm W x 147mm H x 112mm D) ● Cisco IEM-3000-4PC-4TC=: 3.5”W x 5.8”H x 4.4”D (89mm W x 147mm H x 112mm D) ● Cisco PWR-IE50W-AC=: 2.0”W x 5.8”H x 4.4”D (51mm W x 147mm H x 112mm D) ● Cisco PWR-IE50W-AC-IEC=: 2.0”W x 5.8”H x 4.4”D (51mm W x 147mm H x 112mm D) ● Cisco PWR-IE65W-PC-AC=: 2.6”W x 5.9”H x 4.6”D (66mm W x 150mm H x 117mm D) ● Cisco PWR-IE65W-PC-DC=: 2.6”W x 5.9”H x 4.6”D (66mm W x 150mm H x 117mm D) |
| Weight | ● Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: 4.4 lb (2.0 kg) ● Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 4.4 lb (2.0 kg) ● Cisco IEM-3000-8TM=: 2.2 lb (1.0 kg) ● Cisco IEM-3000-8FM=: 3.2 lb (1.45 kg) ● Cisco IEM-3000-4SM=: 2.5 lb (1.1 Kg) ● Cisco IEM-3000-8SM=: 3.0 lb (1.38 Kg) ● Cisco IEM-3000-4PC=: 2.4 (1.08 Kg) ● Cisco IEM-3000-4PC-4TC=: 2.5 (1.16 Kg) ● Cisco PWR-IE50W-AC=: 1.4 lb (0.65 kg) ● Cisco PWR-IE50W-AC-IEC=: 1.4 lb (0.65kg) ● Cisco PWR-IE65W-PC-DC=: 2.6 (1.18 Kg) ● Cisco PWR-IE65W-PC-AC=: 2.7 (1.24 Kg) |
| Operating environment | Operating temperature: -40C to +75C ● -40C to +70C (Vented Enclosure – 40 LFM Air Flow) ● -40C to +60C (Sealed Enclosure – 0 LFM Air Flow) ● -24C to +75C (Fan or Blower equipped Enclosure – 200 LFM Air Flow) ● -40C to +85C (IEC 60068-2-2 Environmental Type Testing – 16 hours) ● Storage temperature: -40C to +85C ● Operating relative humidity: 10 to 95% (non-condensing) ● Operating altitude: Up to 13,000 ft (3963m) ● Storage altitude: Up to 15,000 ft (4573m) |
| Mean Time Between Failures (MTBF) | ● Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: 363,942 ● Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 329,451 ● Cisco IEM-3000-8TM=: 926,999 ● Cisco IEM-3000-8FM=: 264,689 ● Cisco IEM-3000-4SM=: 8,887,990 ● Cisco IEM-3000-8SM=: 7,732,890 ● Cisco IEM-3000-4PC=: 1,494,990 ● Cisco IEM-3000-4PC-4TC=: 1,291,440 ● Cisco PWR-IE50W-AC=: 1,662,359 ● Cisco PWR-IE50W-AC-IEC=: 1,662,359 ● Cisco PWR-IE65W-PC-DC=: 2,468,430 ● Cisco PWR-IE65W-PC-AC=: 2,488,401 |
